The RMA QA 30 aerators have been installed in Imhoff tanks. Although the units are not designed for primary sewage, and are better suited to further along the process at tertiary ponds – provided the protection screens around the pump are cleaned weekly these do operate very well in this situation.
Every summer the council experiences an algae problem in the ponds downstream of the Imhoff tank. It is a frustrating experience for the Council regarding the algae alone, and prevents the water being used for other purposes.
There are two option in dealing with this situation:
Either treat in the pond/s themselves
Or go further upstream and treat the water in the Imhoff tank.
Treating the water in the tank could mean the ponds will still need further treatment – this will depend on the nutrient loading in the tank that is released into the ponds. In this situation the decision was to move upstream to the tank. The sewage water in this tank will be treated with high numbers of macro, fine, micro and nano-bubbles. The result is the microbial activity in the tank will be very high, the sludge and nutrients are expected to be reduced, and the water that is released will be of a higher quality which may prevent the algae issue in the ponds.
An upgrade of the Isisford town water drinking system. The old system was a standard sand filter using sand media where both the filter vessel and sand media needed replacement. The vessel had reached it’s end of life and the media had also completed it’s service. Our partner company Solari Water recommended that a different system be used, incorporating the OV AFM filters with filtration to 0.45 microns.

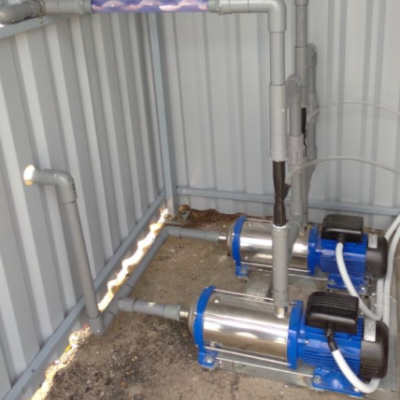

This system is seen at the right, with twin process lines in place for 100% redundancy at all levels of the filtration system. AFM (Activated Filter Media) was chosen as the media of choice for these reasons:
Cryptosporidium and other bacteria control solids are removed down to sub-micron levels
30-80% better performance than sand AFM & should never need to be replaced
Life cycle benefits
Both water and energy (generally capital return is less than 24 months)
100% environmentally sustainable
A ZPM is a Zeta Potential Mixer unit is placed in line, and is one of the cheapest filtration units available anywhere. It increases oxidation potential by up to 100mv, thereby initiating disinfection without chemicals. It includes an entry point for flocculation, coagulation and chlorination chemicals, and improves the result by at least 30% (less chemical needed). It also creates ultra fine (nano-bubbles) for improved water quality.
The golf course in S.E.A required an upgrade of their existing water filtration to capture any entrapped contaminants and improve the water quality for the irrigation system. The source water comes from a dam where suffers from low dissolved oxygen (DO) ,destratification and high iron. Hence, the low DO causes unwanted odors and poor water quality. A HDPE pipe connects the dam to tank 1 location. Tank 1 and tank 2 are connected via a PVC transfer pipe.(Diagram attached below).
The primary objective of the project was to achieve reduction of iron in the water, better aeration in the tanks and manage biofilm build-up in pipes.

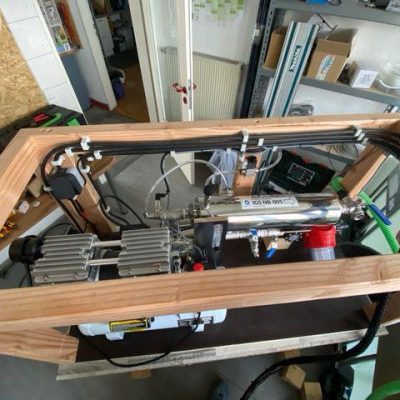

The combination of using the water treatment equipment (1 x water conditioner, 2 x nanobubble generators, 4 x oxygen concentrators, and 1 x RAF inline filter) provides the most effective water solution to the course.

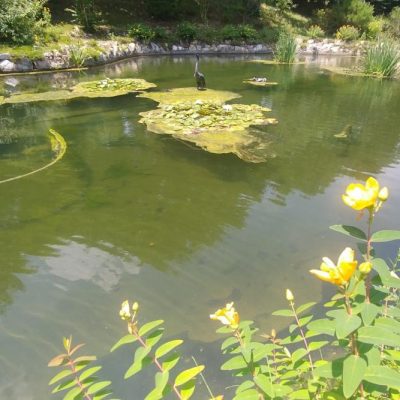

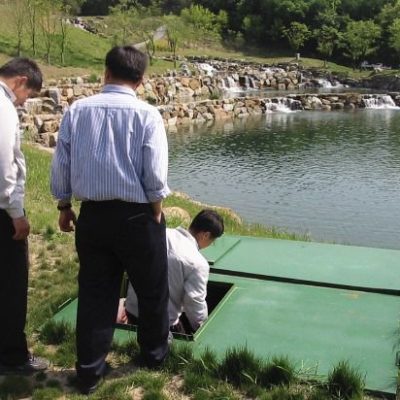

These images are from our visit at the golf course in Korea.

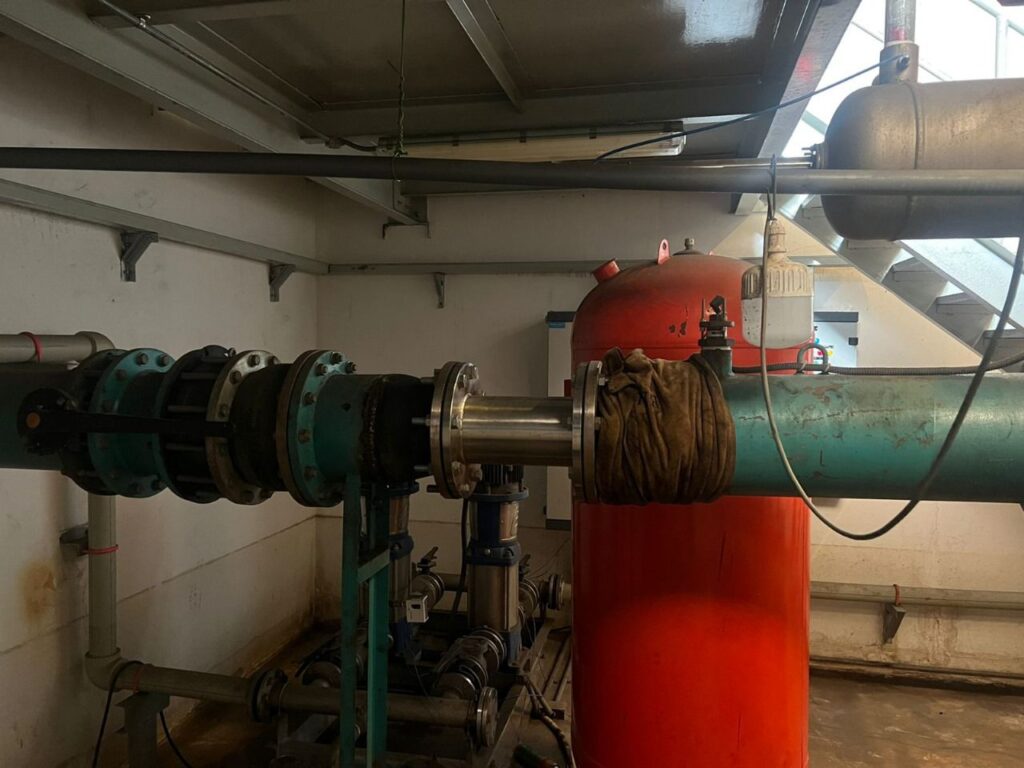

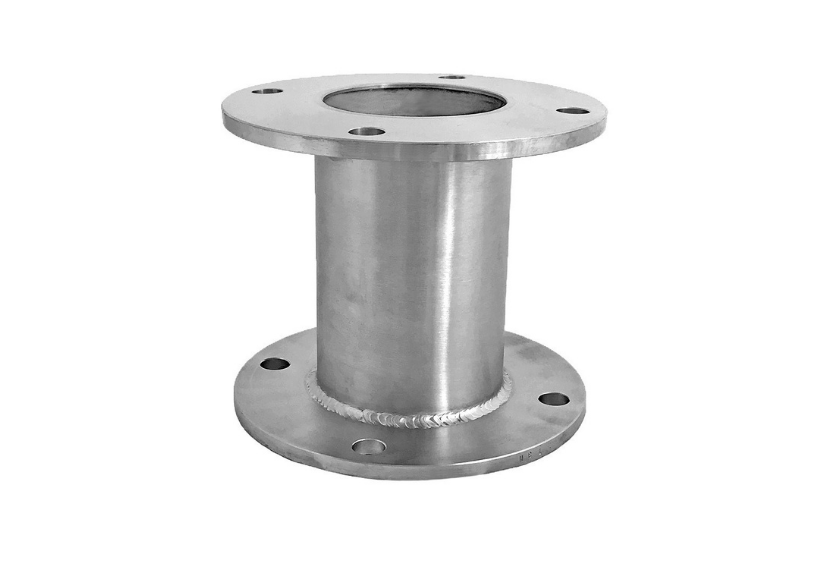

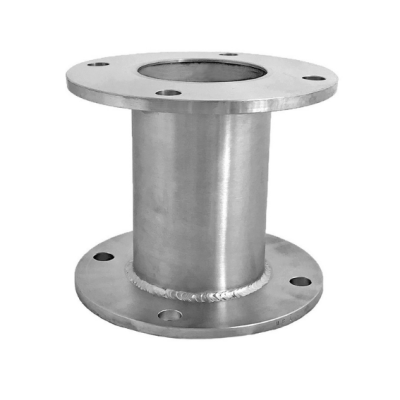

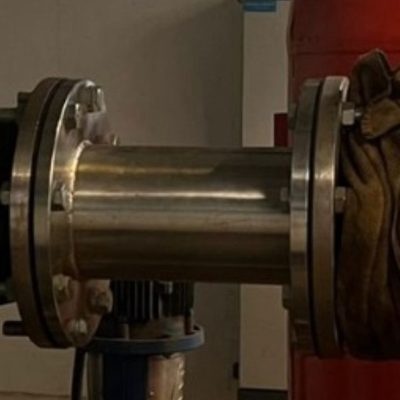

• The water conditioner units were selected based on the flow rate of the pump.

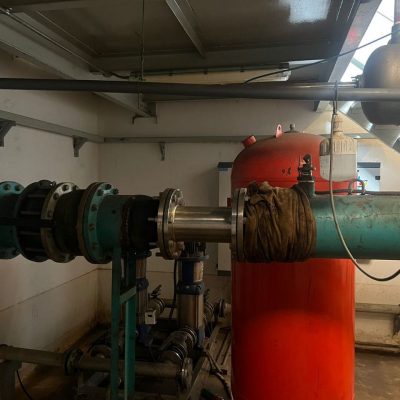

• The water conditioner units were installed on a recirculating line that flowed from the golf course pump house underground bunker(next to the lake) up to the waterfall.

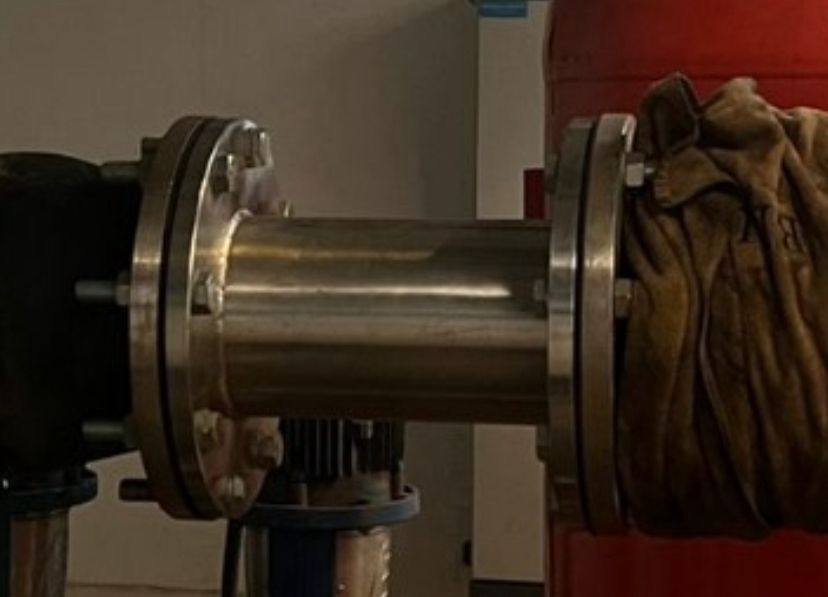

• The water conditioner units were installed after the pump.

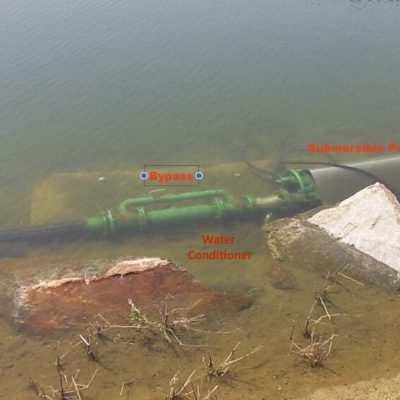

• The installing company also installed a bypass with a ball valve at the same time so if they required more water, they could open the bypass.
This was the installing company’s decision, not ours. It could possibly be a good idea.
Please make sure there was a conditioner in the bypass. Therefore, ALL water being recirculated was conditioned.
Note :
• If the requirement is to filter the water to be swimming pool water then the water requires further conditioning, filtration and chemical injection.
• Depend on the size of lakes, our water conditioners were required to run 24/7.
